TOPDON ArtiDiag800BT

(1 customer review)

£399.99

56 Sold / Sold Out

Our stock is completely sold out now. However, you may want to consider the CGSULIT CG680 PRO, which, in our opinion is the next best alternative and more cost effective than the TOPDON ARTIDIAG 800BT

Device will be shipped via Royal Mail Special Delivery guaranteed next day by 1pm for FREE, to our knowledge none of our competitors offer such a service for FREE. Please select the FREE delivery option at checkout.

Available on backorder

SCANNER WILL BE SHIPPED VIA ROYAL MAIL SPECIAL DELIVERY GUARANTEED NEXT DAY 1PM DELIVERY AS STANDARD. PLEASE SELECT THE FREE DELLIVERY OPTION AT CHECKOUT.

PLEASE ENSURE THE SCANNER IS COMPATIBLE WITH YOUR VEHICLE, RETURNS WILL NOT BE ACCEPTED DUE TO INCOMPATIBILITY.

TOPDON ArtiDiag800 BT All System + 28 Reset Services + 12 Months Warranty

Our stock is completely sold out now. However, you may want to consider the CGSULIT CG680 PRO, which, in our opinion is the next best alternative and more cost effective than the TOPDON ARTIDIAG 800BT

Read our blog post on why the TOPDON ARTIDIAG800BT is one of the best scanners money can buy?

If you’re looking for a scanner with coding and bi-directional capabilities, for an extra Β£145 we’d recommend you look at the THINKTOOL LITE. The THINKTOOL LITE supports coding not just on one one manufacturer but multiple. With it’s bi-directional capabilities, you can programmatically control components such as the windows, injectors and climate control system etc drastically speeding up the time to diagnose problems.

TOPDON ArtiDiag800 BT is designed with technicians in mind. This 5.99” Android tablet-style scanner boasts high-quality features with easy workflow to tackle the common and complex vehicle diagnostic issues for most modern vehicles worldwide. The Bluetooth VCI dongle has been included allowing wireless diagnostics for optimal efficiency

– NO VIN LIMITATIONS UNLIKE OTHER TOOLS – USE IT ON AS MANY CARS AS YOU LIKE

– Free updates for LIFE unlike other tools which are subscription based

– It is easy to do updates via One-Click on the tablet via wifi connection.

All supported car brands software are included, you don’t need to buy additional software separately, unlike other scanners on the market.

Supported Languages

English,Russian,French,Spanish,Portuguese,German,Italian,Japanese

All Systems Diagnoses

TOPDON ArtiDiag800 BT ,a system diagnostic tool, can get quick access to all available electronic systems, such as Engine, Transmission, Airbag, ABS, SRS, EPB, Immobilizer, Doors, Air Conditioning, Gateway, etc. and perform a comprehensive scanning on every module to find out any system fault sand retrieve DTCs related.

Version Information: read the current version information of ECU;

Read Faults Code: read DTCs in the ECU memory and quickly identify the cause of the vehicle issues;

Clear Fault Code: clear DTCs of the ECU memory of the tested system;

Read Data Stream: read and display the real-time data of ECU in various modes (text, waveform, etc.).

28 Special Reset Functions

5 Commonly-Used Reset Functions save time and money for DIY users:

1.Maintenance Light Reset

This function enables you to reset the oil service lamp for the engine oil life
system, which calculates an optimal oil life change interval depending on the
vehicle driving conditions and weather events.

2.Steering Angle Reset

This function can reset the steering angle to zero to keep the car running
straight

3.Injector Coding

This function can write injector actual code or rewrite code in the ECU to the
injector code of the corresponding cylinder, so as to have more accurately
control or correct cylinder injection quantity.

4.Battery Matching

This function can reset the monitoring unit of the car battery, by clearing the
original breakdown information about the lack of battery power to rematch
the battery.

5. ABS Bleeding

-Get a firm brake pad after air exhaustion.

6.Throttle Matching

This function can utilize the car decoder to initialize the throttle actuator so
that the learning value of the ECU returns to the initial state. By doing so, the
movement of the throttle (or idle motor) can be more accurately controlled,
thus adjusting the intake volume.

7.Electronic Parking Brake Reset

This function helps you to replace and reset the brake pad.

8.DPF Regeneration

This function can help remove particulate matter from the trap by using
combustion oxidation methods to keep the performance of the trap stable.

9.Anti-theft Matching

This function can match the anti-theft key after replacing the ignition key,
ignition switch, instrument cluster, engine control unit (ECU), body control
module (BCM), and remote control battery

10.Tire Pressure Reset

This function can reset the tire pressure and turn off the tire pressure fault
indicator when the car tire pressure fault indicator light is on.

11.Suspension Level Calibration

This function can adjust the vehicle body height sensor for level calibration
after replacing the vehicle height sensor or control module in the air
suspension system, or when the vehicle level is not correct.

12.Headlight Matching

This function can initialize the adaptive headlight system. The headlight
system can decide when to turn on the headlights based on the ambient light
intensity. It can also monitor the vehicle’s driving speed, body posture, etc., and
adjust the headlight lighting angle timely.

13.Gearbox Matching

This function can complete the self-learning of the gearbox and improve the
shift quality when the gearbox is disassembled or repaired which may cause
shifting delay or car impact.

14.Sunroof Initialization

This function can set the sunroof lock off, close in rain, memory function of
sliding/tilting sunroof, outside temperature threshold, etc.

15.EGR Adaption

This function can learn the EGR (Exhaust Gas Recirculation) valve after it is
cleaned or replaced.

16.Tooth Learning

This function can perform tooth learning for the car, to turn off the MIL

In total there are 28 special functions which are supported across most makes and models.

96+ Vehicle Brands, 10000+ Vehicle Models

Asian: ACURA, DAEWOO, HONDA, HYUNDAI, INFINITI, KIA, MAZDA, MITSUBISHI, NISSAN, SUBARU, TOYOTA, ISUZU, DAIHATSU, TATA, CHANGAN, CHANGCHENG, CHANGHE, DFXK, FLYER, FUTIAN, GAZ, HAFEI, HUACHEN, IKCO, MAHINDRA, MARUTI, JMC, JACTY, JIAO, JINLONG, JOYLONG, LIFAN, LIUWEI, LUXGEN, PERODUA, PROTON,MAXUS,MVM, PAZ, QIRUI_TY, QOROS, SAICMG, SAIPA, SEAZ, SGM, SSANGYONG, TRUMPCHI, XIALI, XINKAI, ZAZ, ZHONGSHUN, ZHONGTAI, ZHONGXING, etc.

American: CHRYSLER, GM, US-FORD, FIAT (BRAZIL), GM (BRAZIL), DODGE, JEEP, BUICK, CADILLAC, CHEVROLET, etc.

European: ASTONMARTIN, AUDI, BENZ, BMW, FIAT, JAGUAR, LANDROVER, SAAB, SEAT, SKODA, SMART, VOLVO, OPEL, PEUGEOT, DACIA, CITROEN, MINI, PORSCHE, SPRINTER, VW, ALFA ROMEO, VAUXHALL, EU-FORD, FERRARI, IVECO, MASERATI, UAZ, VAZ, BENTLEY, BUGATTI, DR, etc.

Australian: AU-FORD, HOLDEN

Bluetooth Connection for Wireless Communication

Equipped with VCI connector, this Bluetooth car scanner supports wirelessly Bluetooth diagnostics, letting you get rid of the diagnostic cable.

√ The working range for BT communication is about 33 feet (10 m), allowing you to diagnose freely both in and out of vehicle.

√ Its strong and stable signal guarantees stable communication and fast scanning.

√ The VCI connector can be inserted into the docking slot of the tablet, making it convenient to store and hard to lose.

Diagnostic History

√ This History function will record every detail in diagnostic session, making it convenient for users to view all diagnostic records anytime.

√ Meanwhile, it provides direct access to the previously tested vehicles. You can quickly continue with the last diagnosis, without the necessity of starting from scratch.

Smart AutoVIN (AUTOSEARCH)

Based on the smart AutoVIN technology, this TOPDON ArtiDiag800 BT will automatically identify your car and scan the vehicle’s VIN after tapping the AUTOSEARCH and establishing stable communication.

One-Click Online Update

This smart diagnostic tool allows you to update the diagnostic software/APP to the latest version via one click. In this way, you can fix diagnostic bugs and errors in time to improve the scanner performance and enlarge its vehicle coverage.

Online Feedback

When you encounter communication errors or diagnostic software/APP bugs, you can send your vehicle’s year, make, model, and VIN to us via Online Feedback feature for timely technical assistance and improvements.

ArtiFolder for All Diagnostic-Related Data

This ArtiFolder module can record and establish the file of the diagnosed vehicles, including all diagnostic-related data such as diagnostic reports, data stream records, and screenshots.

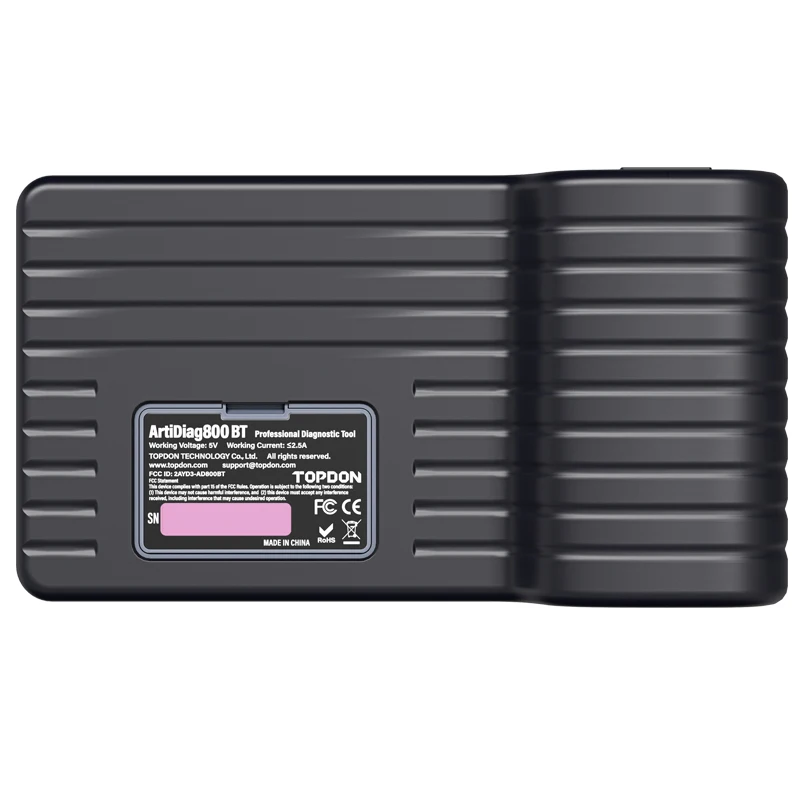

TOPDON ArtiDiag800 BT Tablet

β€’ Battery Capacity: 3100mAh/7.6V
β€’ Screen Size: 5.99 inches
β€’ Resolution: 720*1440 Pixels
β€’ Working Voltage: 5V
β€’ Working Current: ≀2.5A
β€’ Working Environment: 32 ℉ ~122 ℉ (0℃ ~50℃ )
β€’ Storage Environment: -4 ℉ ~140 ℉ (-20℃ ~60℃ )

TOPDON ArtiDiag800 BT Diagnostic VCI Dongle

β€’ Working Voltage: 12V
β€’ Working Current: ≀60mA
β€’ Working Environment: 14 ℉ ~122 ℉ (-10℃ ~50℃ )

Package List

β€’ ArtiDiag800 BT
β€’ Bluetooth VCI Dongle (Pre-installed in the Unit)
β€’ Charging Cable
β€’ Charging Adapter
β€’ Passport Envelope
β€’ User Manual
β€’ Carrying case
